| 101型黃銅鍛壓球閥 |
| 產品型號：Q11F |
|
|
101型黃銅鍛壓球閥（加大）/101 forging brass ball valve(extre-big)

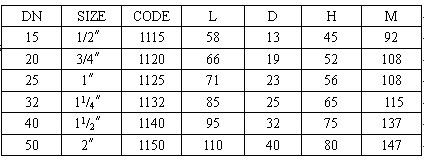

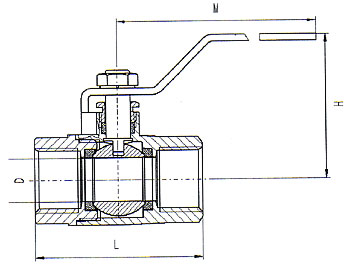

主要尺寸（Dimensions）： |
|
公稱壓力：PN≤1.6Mpa 適用介質：水、氣、油 適用溫度：T≤150℃
螺紋標準：55º英制G管螺紋
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas,oil etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread |
|
01型黃銅鍛壓球閥（加大）/101
forging brass ball valve(enlarged typel)

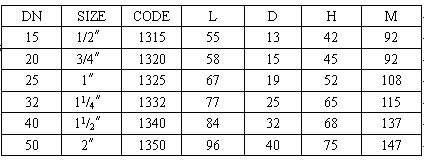

主要尺寸（Dimensions）：
|
|
公稱壓力：PN≤1.6Mpa 適用介質：水、氣、油 適用溫度：T≤150℃
螺紋標準：55º英制G管螺紋
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas,oil etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread |
|
|
|
